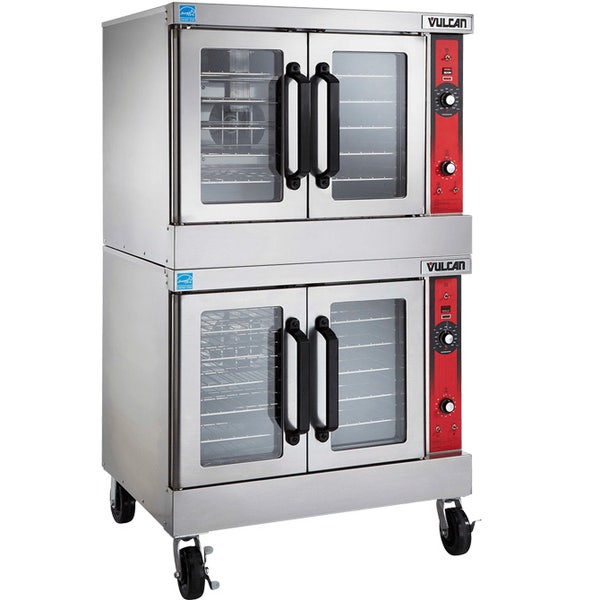

Vulcan Double Deck Gas Convection Oven No. VC55GD features Stainless steel front, sides, top and legs. Independently operated stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interiors measures 29"w x 221⁄8"d x 20"h. One interior oven light per section. Five nickel plated oven racks per section measure 281⁄4" x 201⁄2" with grab-and-go front cut out. Eleven position nickel plated rack guides with positive rack stops. One 50,000 BTU/hr. burner per section. 100,000 total BTU/hr. Electronic spark igniters. Furnished with a two speed 1⁄2 H.P. oven blowermotor per section. Oven cool switch for rapid cool down. 120 volt, 60 Hz, 1 ph power supply required. 6' cord and plug. 7.7 amps total draw per section.

STANDARD FEATURES

• Independently operated lift-off stainless steel doors with double pane windows.
• On-board diagnostics for easy servicing
• Stainless steel front, sides and top.
• Five nickel plated grab-and-go oven racks with eleven rack positions.
• Painted legs.
• 5-hour timer with digital display enhancement.
• Cool-to-the-touch handles.
• 50,000 BTU/hr. burner.
• Electronic spark igniter.
• 1⁄2 H.P. two speed oven blower-motor. 120/60/1 with 6' cord and plug. 7.7 amps total draw.
• Oven cool switch for rapid cool down.
• Porcelain enamel on steel oven interior.
• 3⁄4" rear gas connection with combination gas valve / pressure regulator and safety solenoid system.
• One year limited parts and labor warranty.
• Three year limited warranty on doors.

Exterior Dimensions:
40"w x 40"d (includes motor & door handles) 371⁄4"d (includes motor only) x 683⁄4"h on 8" legs.

CSA design certified. NSF listed.
