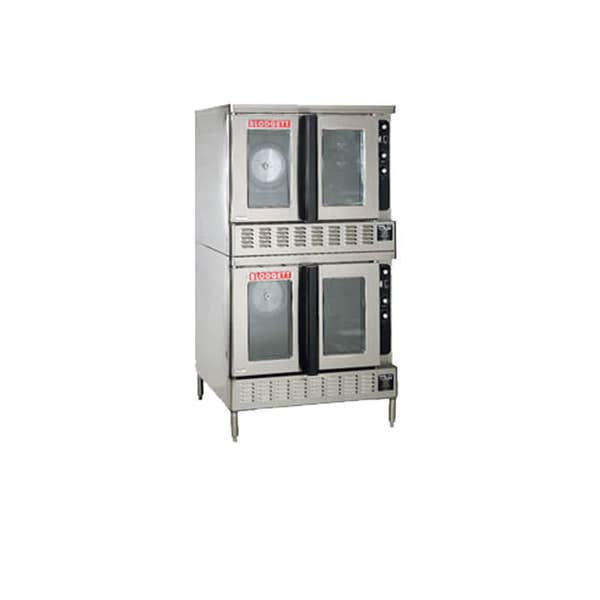

Blodgett DFG-200 DFG Premium Performance Bakery Depth Double Deck Liquid Propane Convection Oven with Draft Diverter

Image 1
  • Image 1
Price:
$35,853.00
SKU:
CD4251DF
Brand:
Blodgett
Condition:
New
Availability:
In stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

The Blodgett DFG-200 DFG Premium Performance Bakery Depth Double Deck Liquid Propane Convection Oven with Draft Diverter is a high-capacity, bakery-depth solution designed to meet the demands of commercial baking environments. Each deck delivers 55,000 BTUs using Blodgetts advanced Dual Flow Gas system, which blends direct and indirect heat for optimal consistency and quality. Engineered to accommodate five full-size pans per deckloaded either front to back or side to sidethis unit maximizes versatility and throughput. Durable stainless steel construction, double-sided porcelainized liners, and dual-pane thermal glass doors ensure long-lasting performance and excellent visibility. The powder-coated handles allow for safe simultaneous door operation, while the HP two-speed blower motor and 6' plug-in cord provide even heat distribution. Includes five chrome-plated racks per section and a " gas connection with draft diverter. Backed by a 3-year parts, 2-year labor, and 5-year limited oven door warranty.

Blodgett double-stacked convection oven with specific callouts for 11 rack positions, simultaneous door operation, and stainless steel construction.



Exterior

  • Full angle-iron frame
  • Stainless steel front, top, and sides
  • Dual pane thermal glass windows encased in stainless steel door frames
  • Powder coated door handle with simultaneous door operation
  • Triple-mounted pressure lock door design with turnbuckle assembly
  • Modular slide out front control panel for easy access
  • Solid mineral fiber insulation at top, back, sides and bottom

Interior

  • Double-sided porcelainized baking compartment liner (14 gauge) for easy cleaning
  • Aluminized steel combustion chamber
  • Dual inlet blower wheel
  • Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8” (41 mm) spacing

Operation

  • Dual Flow Gas system combines direct and indirect heat
  • Electronic spark ignition control system
  • Removable dual tube burners
  • Pressure regulator
  • Manual gas service cut-off switch located on the front of the control panel
  • Air mixers with adjustable air shutters
  • Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C)
  • Two speed fan motor
  • 1/2 horsepower blower motor with automatic thermal overload protection
  • Control area cooling fan
  • Interior lights

Stand Features

  • SSD - Solid state digital control with LED display, Cook & Hold and Pulse Plus
  • 25” (635mm) adjustable stainless steel legs (for single units)
  • 6” (152mm) adjustable stainless steel legs (for double sections)
  • Draft diverter or draft hood for venting (select one)
  • Three year parts and two year labor warranty
  • Five year limited oven door warranty*

Dimensions

  • Floor space: 38-1/4” (972mm) wide x 36-7/8” (936mm) long
  • Product clearance: 6” from combustible and non-combustible construction.
  • Interior 29” (737mm) W x 20” (508mm) H x 28-1/4” (718mm) D
  • If oven is on casters: Single Add 4-1/2” (114mm) to all height dimensions
  • Double: All height dimensions remain the same
  • Double Low Profile: Subtract 2-1/2” (64mm) from all height dimensions

Maximum Input

  • Single 60,000 BTU/hr
  • Double 120,000 BTU/hr (60,000 each section)

Shipping Information

Approx. Weight

DFG-200 Single 565 lbs. (256 kg)

DFG-200 Double 1130 lbs. (512 kg)

Crate sizes

37-1/2” (952mm) x 43-1/2” (1105mm) x 51-3/4“ (1315mm)
  • Dual Flow Gas system combines direct and indirect heat
  • Features Cook & Hold and Pulse Plus®
  • Bakery depth double deck liquid propane convection oven with draft diverter
  • Accepts five full size baking pans left to right or front to back
  • 55,000 BTU/per section
  • Stainless steel front, top, and sides
  • Powder coated door handle with simultaneous door operation
  • Dual pane thermal glass windows on doors
  • Double-sided porcelainized baking compartment liner
  • 1/2 HP two speed 115V oven blower motor
  • 6' cord and plug for oven blower motor
  • Includes five chrome plated racks with eleven positions
  • 3/4" gas connection
  • 38-1/4"W x 36-7/8"D x 70-5/8"H
  • Overall depth including motor and door handle: 47-1/4"D
  • 3-year parts, 2-year labor, 5-year limited oven door warranty
  • Note: Stock image, may show accessories not included with this model

Width
36 - 47"
Type Of Power
Liquid Propane
Oven Interior
Bakery Depth
Oven Types
Double Deck
Type
Ovens
